BROADCAST CAMERA
UHL-43

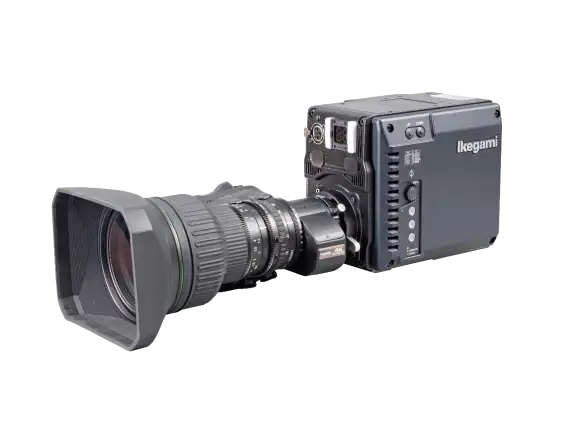

The UHL-43 is a one-piece Native 4K Ultra High Definition Digital Multi Purpose Camera, employing the same sensors as the UHK-430/435 “UNICAM XE” series cameras, and achieving the same performance. The camera provides the same operation and same workflow as the UHK-430/435 system cameras, and due to its compact one-piece form factor, it supports various POV applications such as flash and studio robotic camera, jib and Steadicam camera, traffic and weather camera, scoreboard camera, as well as, a wide range of surveillance applications. Moreover, the camera provides various kinds of 4K main output including 12G-SDI and Quad Link 3G-SDI, realizing flexible 4K system integration.

Features

Real 4K Resolution by 2/3-inch Native 4K CMOS Sensors
The UHL-43 utilizes three 2/3-inch 8 megapixel CMOS sensors, each capable of capturing native 4K 3840 x 2160 resolution images. It offers an excellent sensitivity of F10 (in 4K/60p) and a remarkable signal-to-noise ratio. Unlike single chip cameras or cameras using pixel-offset technology, three native 4K CMOS sensors and prism optics provide real 4K resolution, superior color reproduction and no color aliasing.

HDR(High Dynamic Range) Mode
The camera provides an HLG (Hybrid Log Gamma) mode, conforming to ITU-R BT.2100 which is an international standard for HDR. It is now possible to expand the range represented from dark to bright, providing superb bright pictures with High Dynamic Range, and also achieves rich colors with wide color gamut.



4K/HD Output
The camera outputs the down-converted HD/3G picture from the full 4K image for main output. 4K output is also available as option.

12G-SDI Interface
The camera has been designed taking into consideration that it would support 12G-SDI output interface to flexibly support future trends for 4K systems.
* 12G output is an option.



Indicator
The camera provides front tally, camera number (2 digit) on the front side, and rear tally on the rear side, increasing visibility.

Lens chromatic aberration correction function
Acquires correction data from serial digital lenses and automatically corrects lens chromatic aberration based on lens zoom, focus, and iris position information.




Tally (Front+Rear) / Camera Number Indicator

Specifications

Camera Head
Image Sensor Three 2/3-inch 4K-native CMOS sensors, 8M pixel
Sensitivity F10 @ 4K 59.94p/HD 59.94i
F11 @ 4K 50p/HD 50i
(4K is option)
Optical System 2/3-inch R,G,B prism
Lens Mount 2/3-inch bayonet
Filter ND 1:CLEAR 2: 1/4 3: 1/8 4: 1/16 5: 1/64
CC A:3200K B:4300K C: 6300K D: CROSS
E: OPTION
S/N Ratio 62 dB in HD mode (typical)
Limiting Resolution 2000 TVL (typ.) @ 4K 59.94p (4K Option)
1000 TVL (typ.) @ HD
Gain -6, -3, 0, +3, +6, +9, +12 dB
Gamma OFF, 0.35, 0.4, 0.45
Electrical Shutter 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
General
Operating Voltage DC +11 to +17 V XLR 4pin (x1)
Ambient Temperature Operation: -20°C to +45°C (-4°F to +113°F)
Storage: -20°C to +60°C (-3.9°F to +140°F)
Relative Humidity 30 % to 90 % (non-condensing)
Dimensions W 145 x H 155 x D 169 mm (excluding protrusions)
(W 5.7 x H 6.1 x D 6.7 inch)
Weight approx. 2.6 kg (5.8 lb)
Input / Output
4K/HD-SDI Main Output
* 4K Output is option.		 BNC CN x1 0.8 Vp-p 75 ohm
12G-SDI: SMPTE 2082 (4K option)
3G-SDI: SMPTE 424/425 Level A/B
HD-SDI: SMPTE 292M

BNC CN x4 0.8 Vp-p 75 ohm (option)
3G Quad Link 2 Sample Interleave division: SMPTE
424/425 Level A/B (4K option)
3G-SDI: SMPTE 424/425 Level A/B
HD-SDI: SMPTE 292M
HD-SDI Monitor Output BNC CN x1 0.8 Vp-p 75 ohm
3G-SDI: SMPTE 424/425 Level A/B
HD-SDI: SMPTE 292M
Reference (Genlock)
Input / Output		 BNC In/Out CN x1 0.8 Vp-p 75 ohm
  • Reference Input
    HD: Tri-sync SMPTE 274M 0.6 Vp-p 75 ohm
    SD: Black burst signal (NTSC: 0.286 Vp-p, 75 ohm PAL: 0.3 Vp-p, 75 ohm)
  • Reference Output
    HD: Tri-sync SMPTE 274M 0.6 Vp-p 75 ohm
Lens HR10A-12pin x1, Compliant with TR-B37 standards
Remote Control Ethernet: 8P8C(RJ45) x1 *PoE Non-compliant
ICCP/ISCP: PROC05-8pin x1 (Option)
USB USB 2.0 Type-A 4pin x1
I/O HR10A-10 pin x1
DC Input XLR-4 pin
Analog Audio Input XLR-3 pin x1
  • Input Level Step: -60, -50, -40, -30, -20, -10, 0, +4 dBu
    Variable: ±10 dBu
  • Power Supply: OFF/+48 V
